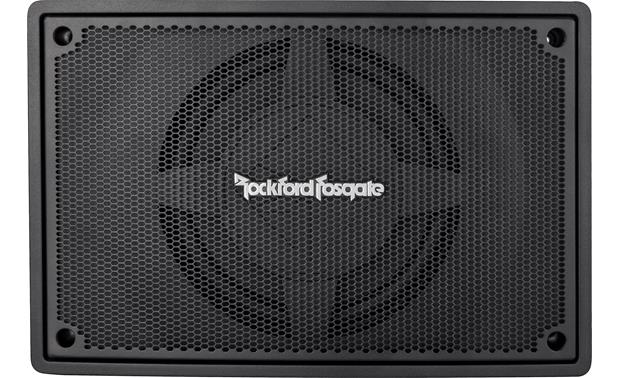

If you need to quickly add bass to a system but don't have much space or height to make it happen? Then the PS-8 is a perfect candidate! The PS-8 features a Punch 8” subwoofer in a custom sealed enclosure and is powered by a mighty 150 Watt amplifier. The system is all-inclusive, so you only need to run power, ground and a signal from the source to get this baby moving. Features a durable exterior that resists scrapes and bumps while in the trunk or cargo area.
- "Closed-loop" design ensures optimum performance between woofer, amplifier and enclosure
- 150 Watt Class D Amplifier and 8" Shallow Woofer

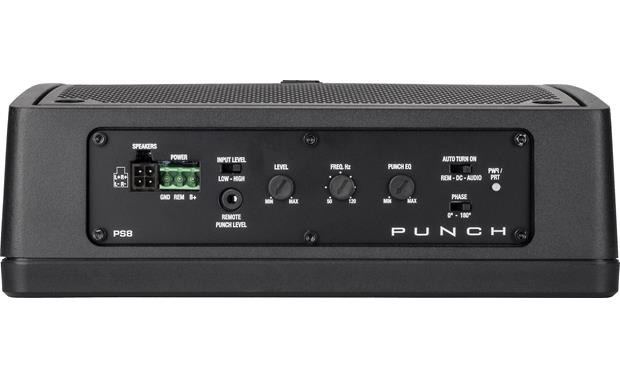

- Adjustable 12db/Octave low pass crossover
- Built-in adjustable bass boost EQ
- Remote bass level control included
- Hi-level/low-level inputs
- Built-in 0°/180° phase switch
- Remote/DC Offset/Signal Sense turn on select
- Short circuit, thermal, and reverse polarity protection
- Quick disconnect power and signal connections

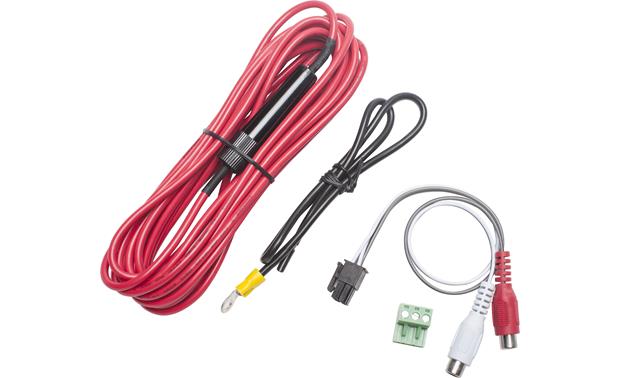

- Includes all power, ground, and turn-on wires
- Includes mounting hardware
- 1 Year Warranty
Power Handling (Watts RMS) - 150 Watts RMS
Enclosure Type - Amplified
Enclosure Material - Cast aluminum w/ ABS backplate
Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2)
Box (H x W x D)
Wedge (H x W x D1 x D2)
14.4 x 9.4 x 3.3 (in)
36.5 x 23.8 x 8.3 (cm)
36.5 x 23.8 x 8.3 (cm)
Frequency Response - 25Hz to 150Hz
Integrated Amplifier - 150 Watts RMS
Crossover Controls - Variable 50Hz to 120Hz @ 12dB/Octave Butterworth
Tone Controls - Gain & Bass Boost
Signal Input
Low-Level: 1 RCA Pair
High-Level: Left/Right Summed Inputs
High-Level: Left/Right Summed Inputs
Woofer Size - 8"
Power Wire Gauge - Included
Heat Sink Type - Cast Aluminum
Cooling - Convection
Circuit Topology Class - Class-D
CEA-2031 Compliant
CEA-2006 Compliant
